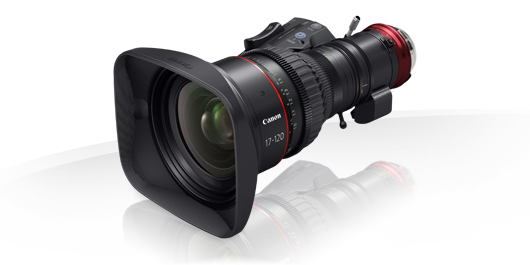

CN7x17 KAS S E1/P1
The CN7x17 KAS S E1/P1 offers stunning 4K optical performance, 7x magnification with a 17mm-120mm focal length. Featuring a servo drive unit, it’s ideal for shooting scenarios where mobility is key.
- 4K optical performance thanks to Canon lens technology; designed for Super35mm cameras
- Servo drive unit enables broadcast or hand-held production
- A single lens for most shooting situations: highly versatile 17mm-120mm focal length
- Rugged build quality for assured performance in all environments; weatherproof and shockproof
- Designed with users in mind for a familiar and intuitive experience
- Compatible with accessories typically used in broadcast and movie environments
- EF- and PL- mounts available for maximum camera compatibility
- Extensive lens communication options (12-pin, EF, Cooke /i) support a range of production styles
Podrobný popis funkcí
Podívejte se podrobněji na Canon CN7x17 KAS S E1/P1
High performance, highly versatile
Using our rich heritage of optical expertise, Canon has created a lens offering outstanding quality -from image centre to image edge. The CN7x17 KAS S E1/P1 supports 4K resolution and incorporates an 11-blade diaphragm to deliver softer, more attractive out of focus areas.
Thanks to an impressive 7x zoom, with focal length spanning 17mm to 120 mm, and maximum T-number of T2.95, the CN7x17 KAS S E1/P1 may be the only lens you need. A 3-group inner focus system developed for Canon lenses reduces focus breathing to an absolute minimum.
It is both weatherproof and shockproof – durable enough for every shooting environment.
Designed for broadcast shooting styles
The CN7x17 KAS S E1/P1 employs a servo drive unit, enabling use in broadcast-style shooting environments where cine lenses are impractical. Compact and lightweight, it offers comfortable on-the-shoulder shooting with the familiar feel of a typical TV zoom lens.
Focus ring rotation is 180o, balancing the accuracy required for 4K imaging with the speed needed for broadcast use. High resolution encoders mean that actions are precisely repeatable, whilst fast start-up and high-speed operation ensure you never miss a moment.
For tripod-based set-ups, existing Canon demand units can be used to control zoom, focus and iris. Virtual studio use is also supported thanks to a sophisticated 16-bit encoder output.
Perfect movie shoots
This lens is also ideal for movie shooting. With the drive unit removed, it can be operated like a traditional cine lens. Industry-standard accessories such as follow focus units are easily attached - 0.8 and 0.5 pitch gears are incorporated into the focus ring. Re-installation of the drive unit is simple. No adjustment of gear positions is required, enabling a fluid, versatile shooting style previously unavailable with large sensor cameras.
All Cinema EOS lenses are colour-matched, ensuring easy integration with other Canon cine lenses.
The CN7x17 KAS S E1/P1 supports multiple lens communication methods for added versatility. Canon’s EF-mount supports lens metadata and other functions such as Peripheral Illumination Correction. A 12-pin serial connection provides an interface found in broadcast environments. Cooke /i Technology is supported in the PL-mount variant, allowing capture of lens data by cameras often used in movie shooting environments.
